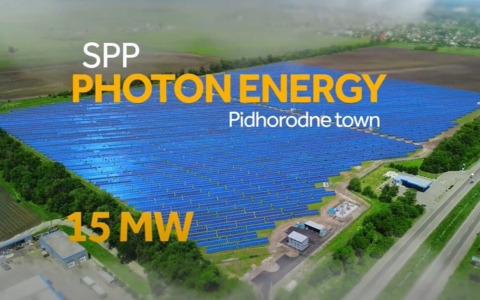

SPS 15 MW «Foton Energy»

Power: 15 MW

Area: 28 ha

The construction period: 06.2018 - 10.2018

Technical
features

Type of
works

System
protection

Conditions
operation

Reviews

Video

Installed capacity of photovoltaic modules — 22,5 MW;
Inverter capacity of station – 15 MW;
The volume of annual electricity generation is 22190 MW/year;
CO2 reduction – tons;
The number of «Risen» photovoltaic modules (PV modules) – 54000 pcs. with a capacity of 325 W;
The number of «АВВ - PVS-120-TL» inverters – 120 рcs. 120 kW each;
The number of transformer 2000/35 / 0,4 - 8 pcs.
The number of distribution points RP- 1 pcs. x 35 kW
The number of load-bearing metal structures - 1500 pcs.

Appointment:

Conversion of solar energy to ~ 35000 V, 50 Hz electric power and its transmission to the electricity grid to other consumers.

Accounting for electricity:

Bidirectional counter:

on generation networks - SL 7000;
on your own - GAMMA 300G3B.

Feasibility study design;
Development of the design documentation;
Supply of solar panels and inverter equipment;
Supply of power and switchboard equipment;
Construction and installation works;
Connection of the constructed SPS to the grid;
Member registration in WEM and “green” tariff approval;
Service maintenance of SPS.

0.4 kV AC power supply:

automatic switch - 3200А 85кА EP 332 S 3p (ЕТІ);
surge arresters - ETITEC A 500/10 / A-NO (ЕТІ);

35 kV AC power supply:

vacuum switch 35 кВ OVB-VBF 40,5 2500 A (ABB);
РГП-1а-35/1000 УХЛ1, 1000 А triple-pole disconnectors;
AZC491 surge suppressors (Sicame);
HDA-41M-NFF surge suppressors (Raychem);

When operating a solar power plant:

the conditions and operating requirements of the equipment provided by its manufacturers in the relevant instructions must be observed;
Before switching on the equipment, make sure that it is not mechanically damaged;
it is advisable to periodically perform maintenance work on the equipment as recommended by its manufacturer;
Appropriate safety measures must be followed.

SPP

SPP "Foton Energy"
