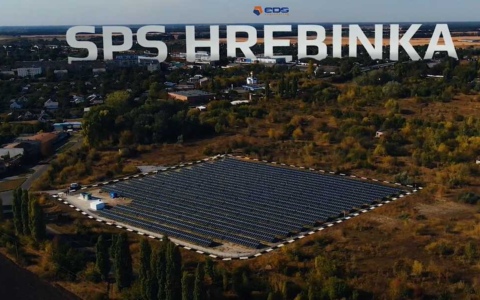

SPS 975 kW "Grebinka"

Power: 975 kW
Area: 1,8 ha
0 Technical
features
1 Type of
works
2 System
protection
3 Conditions
operation
4 Video
0
Technical
features
  • Installed capacity of photovoltaic modules — 1,175 MW;
  • Inverter capacity of station – 0,975 MW;
  • The volume of annual electricity generation is 1503 MW/year;
  • Quantity and power of polycrystalline solar panels "JAM 72S09-380 / PR" - 3094 pcs. (380 W);
  • Quantity and power of HUAWEI SUN2000-36KTL inverters - «SMASHP75-10» - 13 pcs .х 75 kW;
  • Number of load-bearing steel structures - 92 pcs;
  • Complete transformer substation -1250-10-0,4-У1 - 1 pcs.



Appointment:

  • Conversion of solar energy to ~ 10000 V, 50 Hz electric power and its transmission to the electricity grid to other consumers.



Accounting for electricity:

Bidirectional counter:

  • on generation networks - SL ZMD 405+С32:С40 СГ 44.557 С;
  • on your own - GZMG 310.
1
Type of
works
  • Feasibility study design;
  • Development of the design documentation;
  • Supply of solar panels and inverter equipment;
  • Supply of power and switchboard equipment;
  • Construction and installation works;
  • Connection of the constructed SPS to the grid;
  • Member registration in WEM and “green” tariff approval;
  • Service maintenance of SPS.
2
System
protection

0,4 kV and 10 kV AC power supply:

  • automatic air switch 10 kV BB/VL12-25-1000A ;
  • surge suppressors - ОПНп-Ю/12,0 ;
  • РВЗ10-630-11 fuse disconnector;
  • П Т 011-10 fuses.
  • current transformers ТОЛУ 10 75/5 (ABB);
  • voltage transformers ТШ 066-2/1500 5А.
3
Conditions
operation

When operating a solar power plant:

  • the conditions and operating requirements of the equipment provided by its manufacturers in the relevant instructions must be observed;
  • Before switching on the equipment, make sure that it is not mechanically damaged;
  • it is advisable to periodically perform maintenance work on the equipment as recommended by its manufacturer;
  • Appropriate safety measures must be followed.
4
Video
